Breakthrough in Fluid Control Driven by the Inverse Piezoelectric Effect: Technical Advances and Application Prospects of Micro-Jet Air Pumps

Driven by industry trends toward equipment miniaturization, intelligence, and high integration, traditional fluid control technologies face critical bottlenecks such as bulky dimensions, elevated operating noise, and severe electromagnetic interference (EMI). As a next-generation fluid control technology, the micro-jet air pump (piezoelectric air pump) leverages innovative structural design and actuation mechanisms to eliminate conventional motors and gear transmission components. This delivers a highly efficient, silent, and compact solution for precision fluid management.

I. Operating Principle & Core Technologies

1. Inverse Piezoelectric Actuation Mechanism

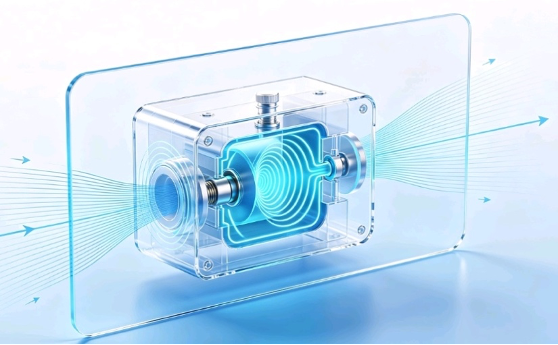

The primary driving force of the micro-jet air pump originates from the inverse piezoelectric effect of piezoelectric materials. When an AC electrical signal is applied, the piezoelectric ceramic undergoes micron-scale deformation under the electric field. This mechanism directly converts electrical energy into mechanical energy, generating high-frequency, low-amplitude vibrations in the ceramic resonator to drive fluid motion without requiring electromagnetic coils, rotors, or mechanical transmission assemblies.

2. High-Frequency Cyclic Actuation and Fluid Control

Operating at a high frequency of 24.5 kHz (±2 kHz), the air pump continuously executes a "suction-exhaust" cycle. In coordination with internal micro-valves, these microscopic vibrations are transformed into a high-velocity, continuous airflow. The operating process comprises the following stages:

• Suction Phase: As the driving voltage reaches its positive peak, the piezoelectric actuator flexes upward, causing the pump membrane to arch. The internal chamber volume expands instantaneously, creating negative pressure that opens the inlet check valve and draws external gas into the pump chamber.

• Exhaust Phase: The polarity of the driving voltage rapidly reverses, causing the piezoelectric actuator to flex downward and reset the membrane. The chamber volume contracts sharply, compressing the gas and rapidly raising internal pressure. This seals the inlet valve and forces open the outlet check valve, expelling the gas at high frequency.





3. Micron-Level Precision Control and Energy Efficiency

Because the deformation amplitude of piezoelectric ceramics is directly proportional to the applied peak-to-peak voltage (e.g., 25 Vpp square wave) and its vibration frequency synchronizes strictly with the electrical drive signal, the micro-jet air pump achieves exceptionally rapid response times. By precisely modulating the frequency and duty cycle (e.g., 50% duty cycle) of the drive signal, the system enables microliter-level (μL) flow regulation and stable pressure output. Furthermore, eliminating mechanical friction losses substantially enhances energy conversion efficiency, delivering consistent performance at ultra-low power consumption.

II. Comparative Analysis and Key Technological Advantages

Compared to conventional micro-diaphragm pumps (driven by motors and eccentric cams) and electromagnetic pumps (driven by electromagnetic coils and armatures), micro-jet air pumps offer generational technological advantages across physical form factor, actuation mechanisms, and electromagnetic compatibility:

• Ultra-Compact Footprint & High Integration: Eliminating motors, gearboxes, and eccentric linkages reduces the total volume to 1/10th that of traditional pumps (e.g., model VF0003-000 measures just 21 × 19 mm). This significant space reduction allows seamless integration into ultra-thin smartwatches, portable medical devices, and sensor modules, enabling single-chip packaging with control circuitry.
• Ultra-Silent Operation: Traditional pumps generate low-frequency hum and vibration due to high-speed motor rotation and mechanical friction. In contrast, the micro-jet air pump operates at an ultrasonic frequency of 24.5 kHz—beyond the threshold of human hearing. Combined with smooth fluid delivery, operating noise is reduced to below 40 dB (with optimized scenarios reaching library-quiet levels of <30 dB).
• Zero Electromagnetic Interference (EMI): Electromagnetic and motor-driven pumps generate strong EMI and back-EMF during startup and operation, which can disrupt adjacent high-precision sensors and wireless communication modules. Micro-jet air pumps operate purely via electric field-induced piezoelectric deformation, generating zero magnetic fields and ensuring complete EMI elimination.

• High Reliability & Extended Service Life: The absence of mechanical friction parts eliminates lubrication requirements and wear-related failures. This design supports a operating lifespan exceeding 10 years. Coupled with minimal energy conversion losses, energy efficiency improves by over 40%, significantly extending the battery life of portable electronics.


•


Performance Comparison Matrix

III. Market Trends and Key Application Scenarios

With the rapid adoption of smart wearables, home healthcare devices, and advanced consumer electronics, market demand for miniaturized, low-power, and silent fluid control components continues to escalate. Micro-jet air pumps are rapidly penetrating three core sectors:

1. Medical & Healthcare (Primary Market Sector)
• Smart Blood Pressure Monitoring: Powers smartwatches and wrist-worn blood pressure monitors by providing stable, silent pneumatic power for non-invasive, real-time monitoring.
• Respiratory & Nebulization Therapy: Drives medical nebulizers to produce micron-sized aerosol particles for targeted airway delivery, while supplying quiet, consistent airflow for portable ventilators and oxygen concentrators.
• Negative Pressure Therapy & Precision Diagnostics: Utilized in negative-pressure physical therapy devices and automated hematology analyzers for non-destructive micro-sample transport.
2. Consumer Electronics
• Personal Care & Wearables: Integrated into head and eye massagers to deliver comfortable pneumatic massage action.
• Advanced Thermal Management: Serves as ultra-compact liquid cooling pumps for high-performance smartphones and laptops, balancing demanding thermal dissipation with silent operation.
3. Automotive Electronics

• Applied in EV battery thermal management, high-pressure fuel injection, and sensor gas sampling, ensuring system safety and operational efficiency through precise thermal and pneumatic regulation.





Conclusion

By leveraging the inverse piezoelectric effect, the micro-jet air pump redefines the technological pathway of traditional mechanical pumps, establishing new benchmarks in miniaturization, energy efficiency, acoustic performance, and precision control. As the markets for smart healthcare and wearable devices continue to expand, this technology is poised to become a vital driver in advancing micro-fluidic control systems.
