MEMS Ultrasonic Sensor

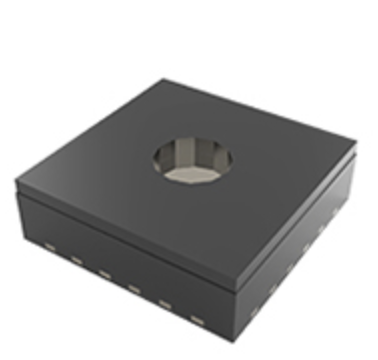

Product model: PU0001
MEMS ultrasonic sensor is a new type of sensor that combines microelectromechanical system (MEMS) technology with ultrasonic technology. It uses micro-machining processes to convert electrical energy into acoustic energy and vice versa, offering features such as miniaturisation and low power consumption. This makes it a flexible solution for both consumer electronics and industrial applications.
Product Features
- The MEMS ultrasonic sensor with a 65 kHz resonance frequency achieves a balance between penetration and accuracy in complex industrial environments (wavelength in air approximately 5.2 mm).
- - Ultra-compact size: Volume approximately 20mm³
- - Convenient for integration into various scenarios: Surface-mountable, no separate installation required
- - FOV up to 180°, single chip achieves full-scene coverage
- - Low-voltage drive: Achieves 110dB high sound pressure level at 10Vop low drive voltage
- - Mature manufacturing process: Based on semiconductor mass production high-precision micro-nano fabrication and packaging processes
Product Specifications

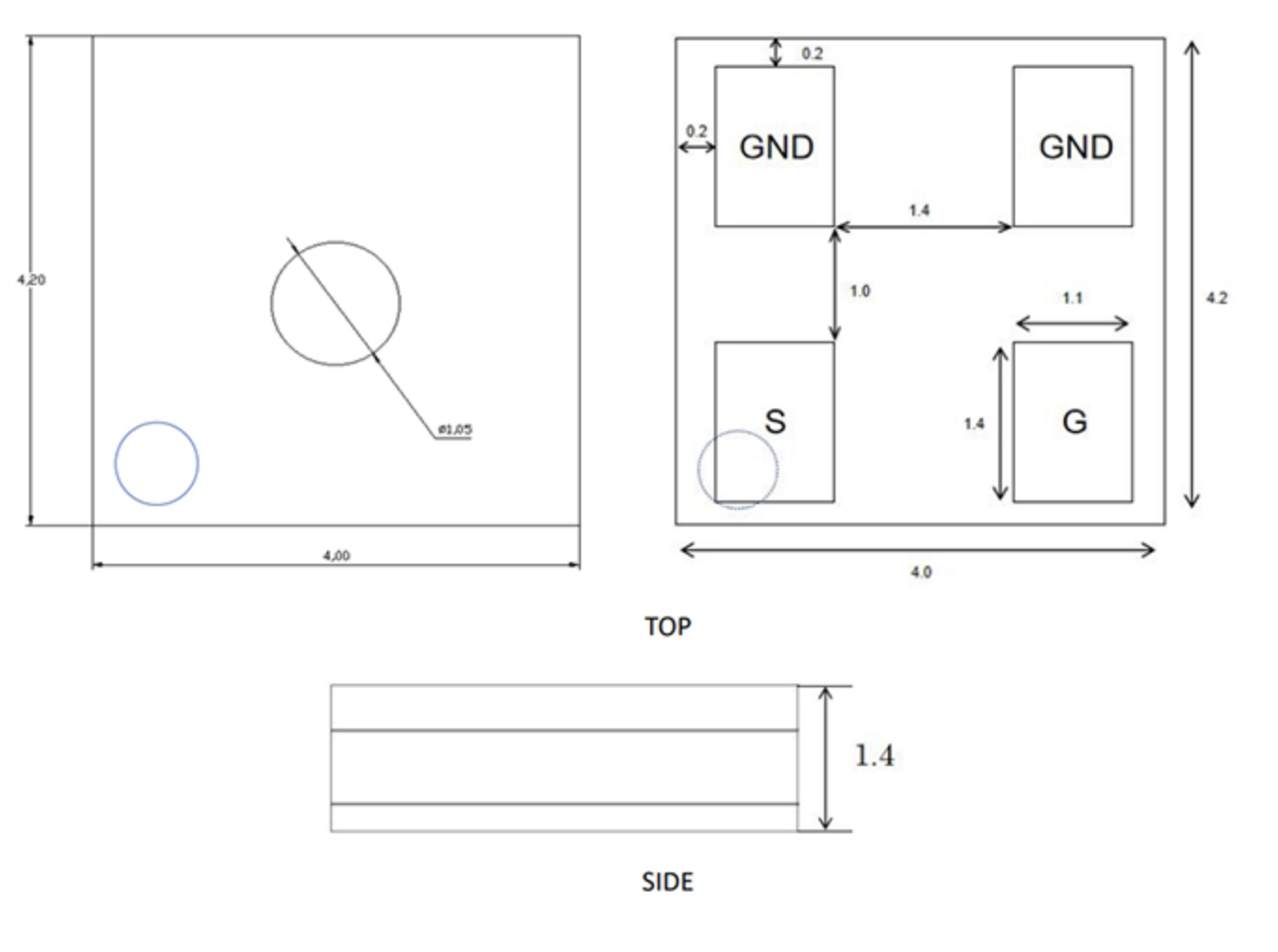

Dimensions(mm)

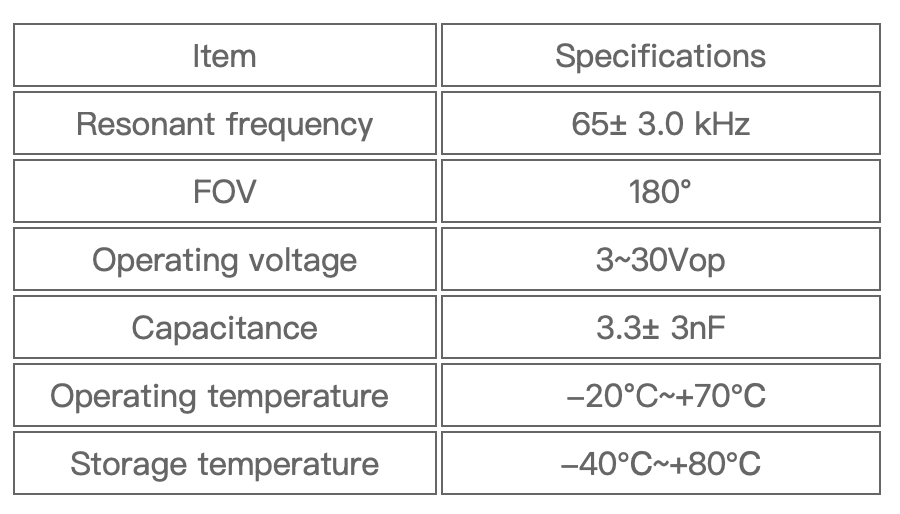

Specifications
Applications
- Pallet depth detection for autonomous forklifts
- Collision prevention for aerial work platforms
- Detection for autonomous cleaning vehicles/gates
- Height monitoring for agricultural spray booms
