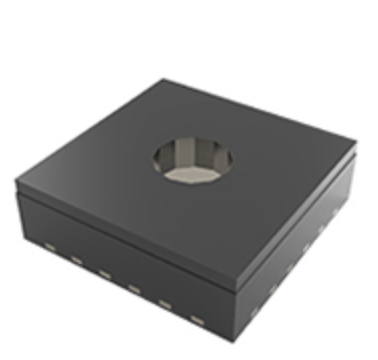

MEMS Ultrasonic Sensor
Product model: PU0002
The PU0002-000 is a miniature ultrasonic Time-of-Flight (ToF) sensor featuring a Surface-Mount Device (SMD) package that enables direct PCB reflow soldering, eliminating the need for separate mechanical assembly.
It offers an ultrawide Field of View (FoV) of up to 180°, which can be further customized to meet specific application requirements. The sensor supports both transceiver (single-transducer transmit/receive) and bistatic (separate transmit/receive) operating modes. When paired with the recommended drive circuit, it delivers precise distance measurement for targets between 20 cm and 500 cm, as well as proximity warning signals for obstacles within this range.
Utilizing ultrasonic waves, the sensor functions seamlessly in any lighting condition—from bright sunlight to total darkness—providing centimeter-level ranging accuracy regardless of target color or optical transparency. With its customizable FoV and robust performance, the PU0002-000 is ideal for a broad range of applications in security monitoring, industrial automation, and smart home systems.
Product Features
- The MEMS ultrasonic sensor with a resonance frequency of 40 kHz has low attenuation in common media (such as air) and a moderate wavelength (approximately 8.8 mm).
- - Ultra-Compact Dimensions: 5.3 × 5.0 × 1.4 mm³
- - Seamless System Integration: SMD package enables direct reflow soldering, eliminating manual secondary assembly.
- - Wide Field of View (FoV): A single sensor chip achieves a 160° FoV, with options for custom angular response.
- - High Operational Reliability: Immunity to ambient light interference, steam, smoke, and moisture ensures uncompromised detection accuracy based on ultrasonic sensing principles.
Product Specifications

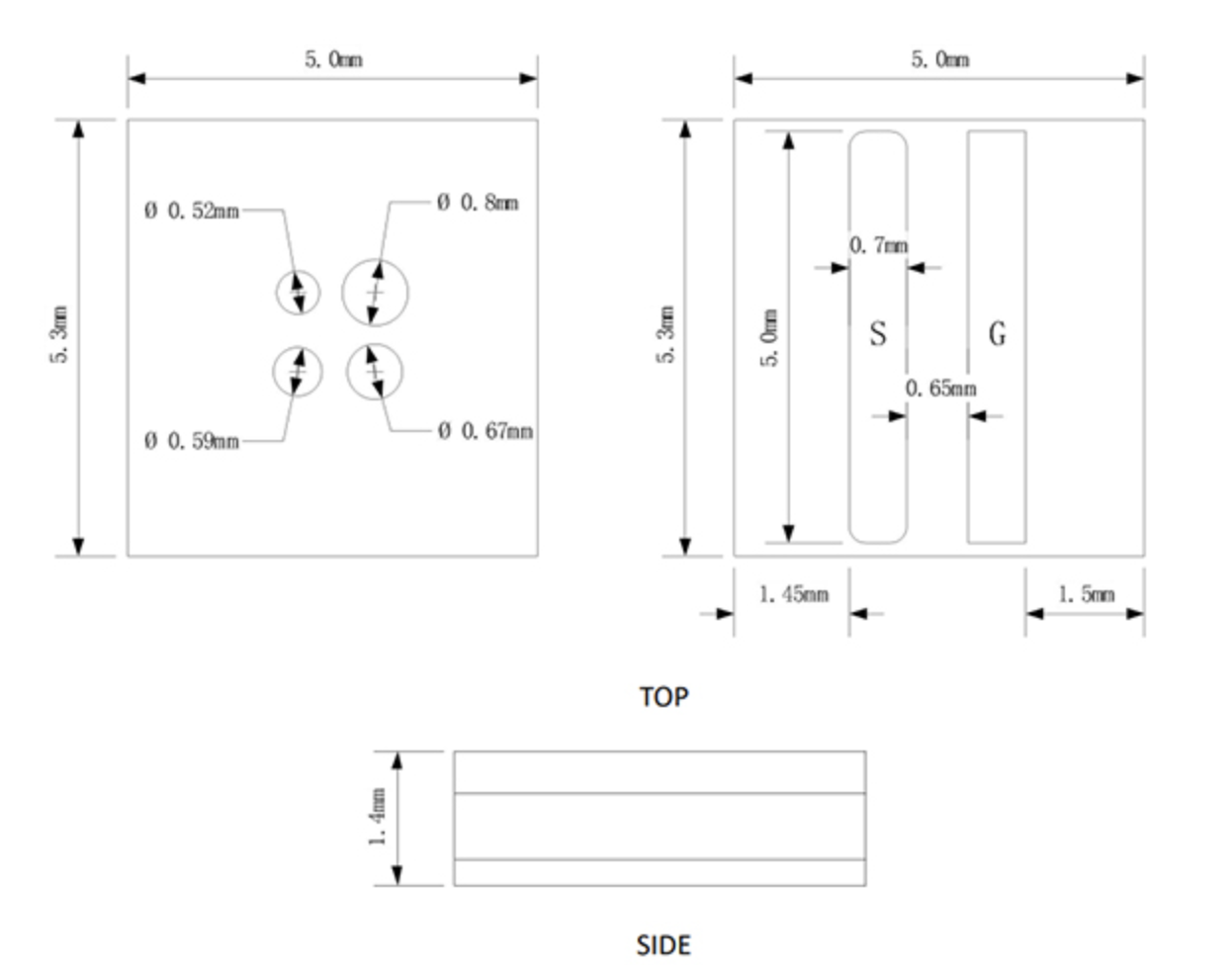

Dimensions(mm)

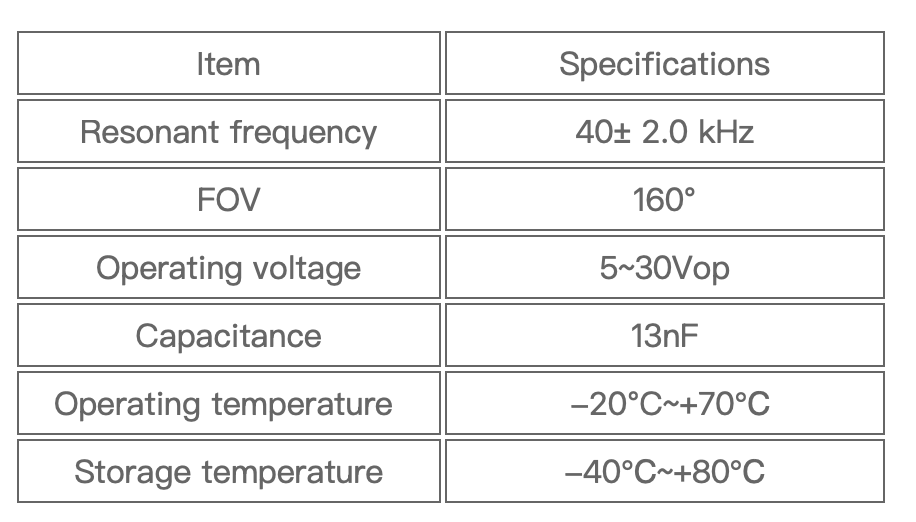

Specifications
Parameter | Description | Min. | Typ. | Max. | Unit |
Blind‑zone Time | Ring‑down @14 pulses, 20V | 1100 | µs | ||
Resonant Frequency | 38 | 40 | 42 | kHz | |
Transmit Sensitivity | @5Vrms @10cm | 118 | dB | ||
Receive Sensitivity | @40kHz | -60 | dBV | ||
Field‑of‑View | 160 | ° | |||
Operating Voltage Vs | 5 | 20 | Vop | ||
Capacitance | 6 | nF | |||
Reflow Temperature | SMT | 260 | °C | ||
Operating Temperature | -20 | 70 | °C | ||
Storage Temperature | -40 | 80 | °C | ||
Ingress Protection Rating | IP54 | ||||
RoHS | YES | ||||
Applications
- Child Presence Detection (CPD) for automobiles
- Navigation and obstacle avoidance for service robots
- Automatic sensing system for smart toilets
