VU0002

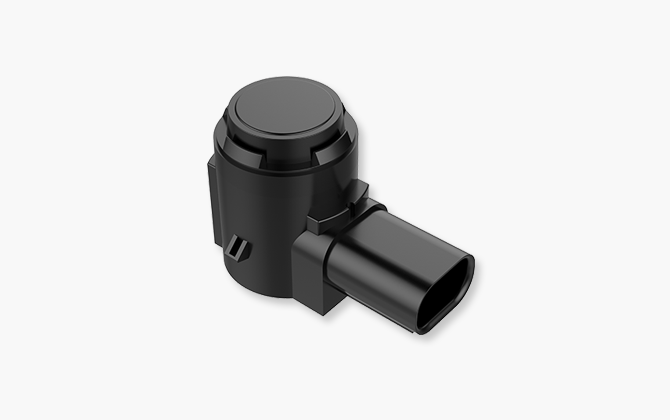

AK1 Ultrasonic Sensor
Product model: VU0002
The Ultrasonic Sensor uses the ultrasonic time-of-flight principle to accurately measure the distance between the sensor and the obstacle. The sensor outputs digital distance signal and self-test information with various communication protocols such as LIN bus and 2/3-wire IO, which makes it suitable for a variety of intelligent parking systems.This product features excellent weatherability, high stability and anti-interference ability. It can be used for intelligent parking systems, blind spot detection systems, and the obstacle avoidance systems for autonomous vehicles.
Product Features
  • - Digital signal output
  • - High accuracy and reliability
  • - Built-in circuit which matches the self-developed transducer
Product Specifications

- Dimensions



- Specifications


Parameter

Value

Operating Frequency

55.5±1.0 kHz

Horizontal Detection Angle

90° ± 5°

Vertical Detection Angle

45° ± 5°

Ranging Range

30cm ~ 250cm

Measurement Error

≤ ±5cm

Communication Protocol

LIN2.2

Refresh Rate

≤ 40Hz

Nominal Operating Voltage (Range)

12V (9~16V)

Operating Current

≤ 20mA

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +95℃

Weight

≤20g

Product Ingress Protection

IP6K9K

Material

RoHS‑compliant

Note: Test conditions: T=23±5℃, H=40~60% R.H, Φ75mm/1m PVC


Applications
- Parking Distance Measurement System (PDC)
- United Paradise Associates (UPA)
