MEMS Ultrasonic Sensor
Product model: PU0001

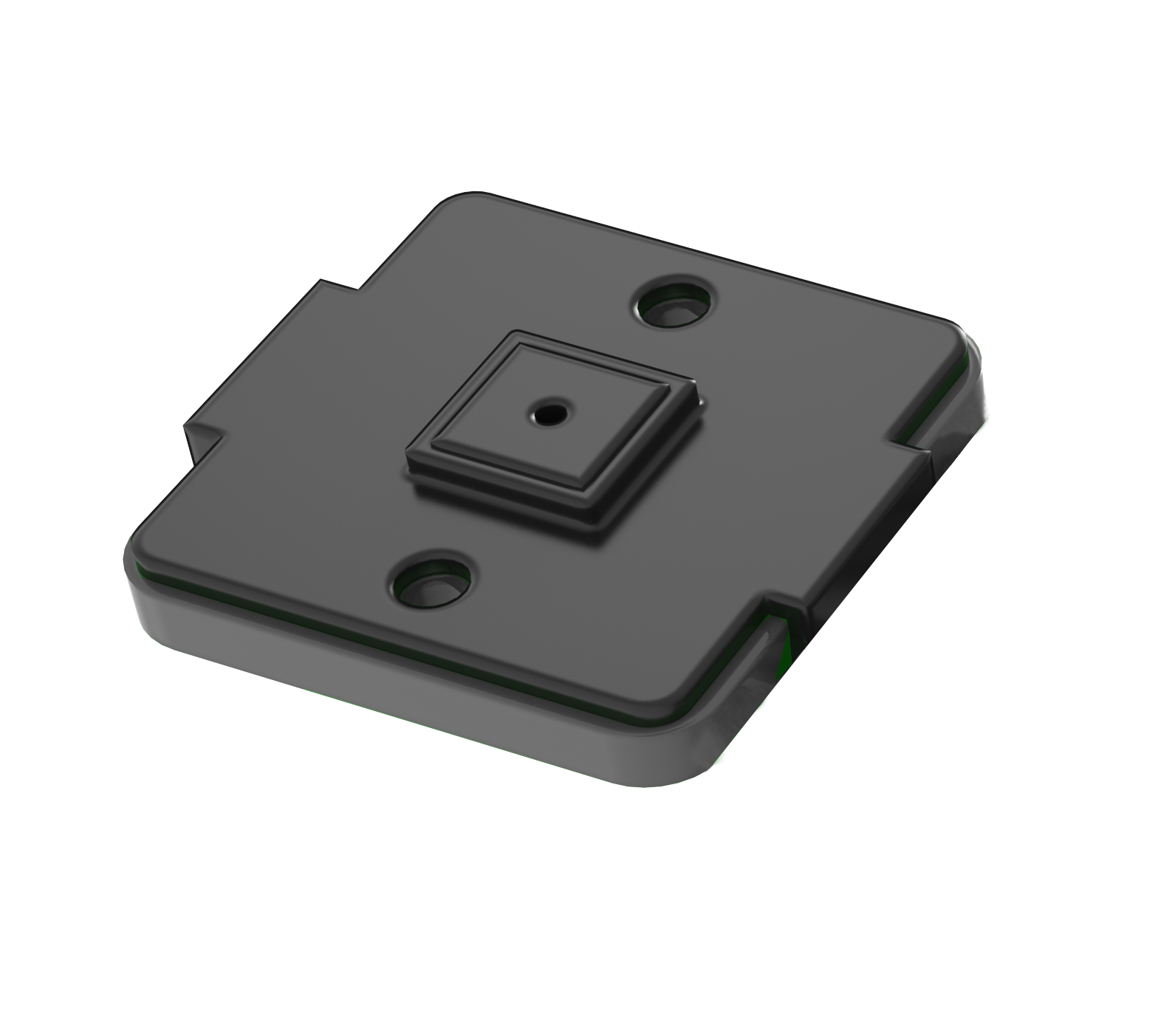

The PU0001-000 is a miniature ultrasonic Time-of-Flight (ToF) sensor featuring a Surface-Mount Device (SMD) package that enables direct PCB reflow soldering, eliminating the need for separate mechanical assembly.
Designed for short-to-medium range detection, the PU0001-000 delivers accurate distance measurement from 10 cm to 120 cm when paired with the recommended drive circuit, while also providing early proximity warning signals for obstacles within this range. Additionally, it supports a bistatic (separate transmit and receive) configuration to achieve zero-blind-zone distance sensing.
Utilizing ultrasonic technology, the sensor operates reliably in any lighting condition—from direct sunlight to total darkness - providing millimeter-level ranging accuracy regardless of target color or optical transparency. Featuring a 90° acoustic field of view (FoV) with customizable angular profiles, the PU0001-000 is widely applicable in security systems, industrial sensing, and smart home automation.
Product Features
- The MEMS ultrasonic sensor with a 65 kHz resonance frequency achieves a balance between penetration and accuracy in complex industrial environments (wavelength in air approximately 5.2 mm).
- - Ultra-Compact Footprint: Compact form factor with a volume of approximately 20 mm³.
- - Seamless Co-location Integration: Surface-mount device (SMD) packaging enables direct reflow integration, eliminating manual secondary assembly.
- - Panoramic Field of View (FoV): Delivers a 90° sound pressure FoV, enabling full panoramic coverage with a single sensor chip.
- - Low-Voltage Drive Efficiency: Achieves high sound pressure levels up to 110 dB SPL at a low driving voltage of 10 Vₚₚ.
- - Semiconductor-Grade Manufacturing: Built on high-volume, ultra-precise micro/nano semiconductor fabrication and advanced packaging technology.
Product Specifications
Dimensions(mm)
Table 1 Sensor Interface Definition
Pin ID | Pin Function |
S | Drive Voltage Negative / Echo Signal Output Positive |
G | Drive Voltage Positive / Echo Signal Output Negative |
GND | Ground |
Specifications
Parameter | Description | Min. | Typ. | Max. | Unit |
Blind‑zone Time | Ring‑down @14 pulses, 20V | 500 | µS | ||
Resonant Frequency | 58 | kHz | |||
Transmit Sensitivity | @10Vop @10cm | 110 | dB | ||
Receive Sensitivity | @65kHz | -65 | dBV | ||
Field‑of‑View | For 1×1m² wooden board | 180 | ° | ||
Acoustic Field‑of‑View | 90 | ° | |||
Operating Voltage Vs | 3 | 20 | Vop | ||
Capacitance | 3.0 | 3.33 | 3.7 | nF | |
Ranging Range | With recommended reference circuit | 10 | 120* | cm | |
Reflow Temperature | SMT | 260 | °C | ||
Operating Temperature | -20 | 70 | °C | ||
Storage Temperature | -40 | 80 | °C | ||
Storage Humidity | 90 | %RH | |||
Ingress Protection Rating | IP65 achievable with additional coating | IP54 | |||
RoHS | YES | ||||
Applications
- Pallet depth detection for autonomous forklifts
- Collision prevention for aerial work platforms
- Detection for autonomous cleaning vehicles/gates
- Height monitoring for agricultural spray booms
